Electric Tiltable Double Jacket Stove
    Publish time 2025-07-24 14:12

Electric heating, equipped with a tilting large capacity pot body, with power and time adjustment.

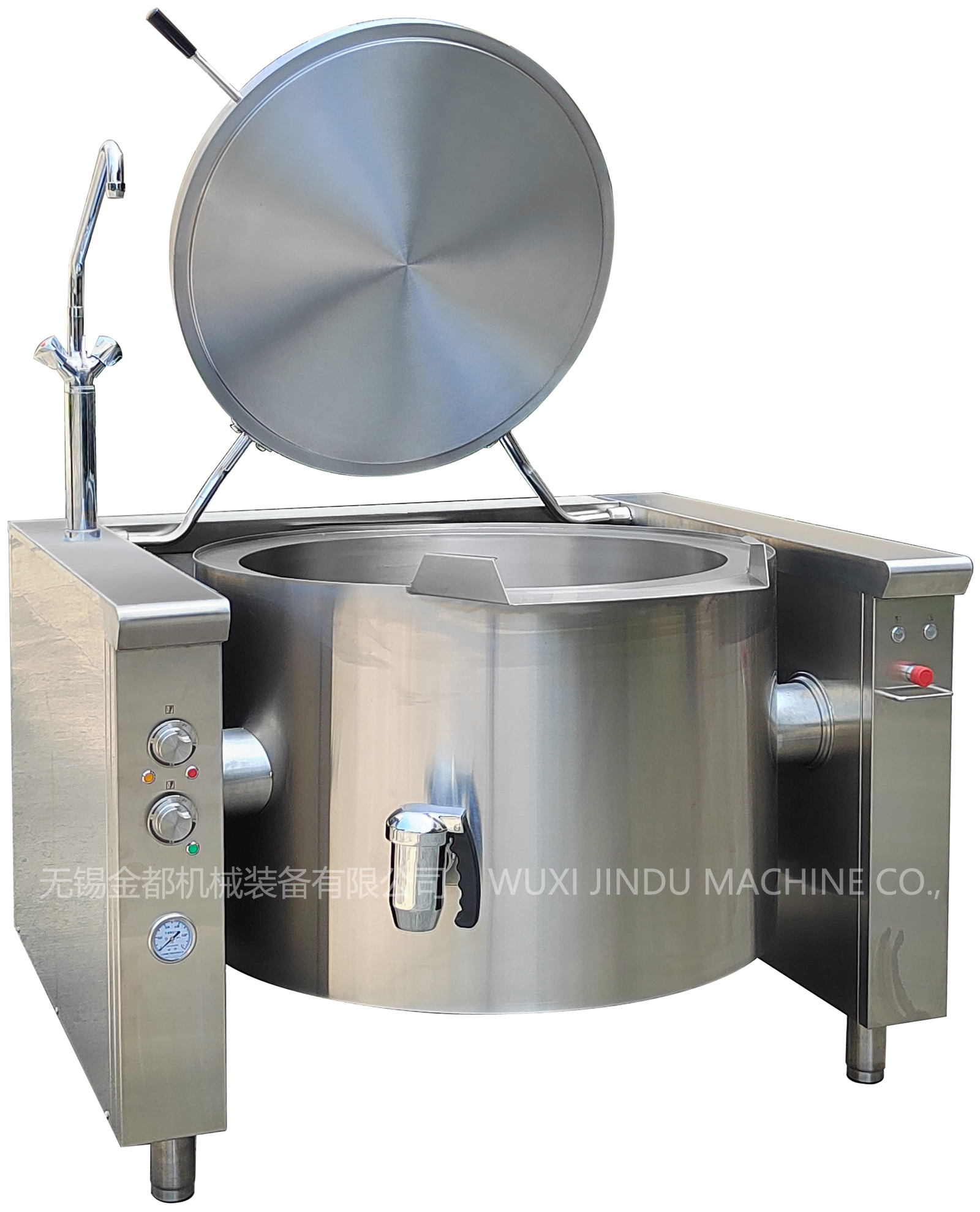

Electric Tiltable Double Jacket Stove


 通用说明

可倾式灶具适用于央厨等各类大中型食品加工场所,配置可倾倒的大容量锅体,具有功率和时间调节功能,适合一次性烹饪加工如炖菜、酱料或需长时间炖煮食物。

GENERALITY:
The tilting stove is suitable for professional food processing places such as central kitchens. It is equipped with a large capacity tiltable cauldron, power and time is adjusted. It is suitable for one-time processing such as stewing dishes, sauces, or food that needs to be stewed for a long time.


 主要特点

 FEATURE & ADVANTAGE

 双层锅体,中间注水,间接热传导

 整体电加热锅底,压力显示

 电动可倾式大容量锅体

 防汤锅无水干烧、过压等保护措施

 支持锅体容积、加热功率定制

 Jacketed cauldron,water in the middle,Indirect heat conduction

 Whole electric heating cauldron bottom, pressure display

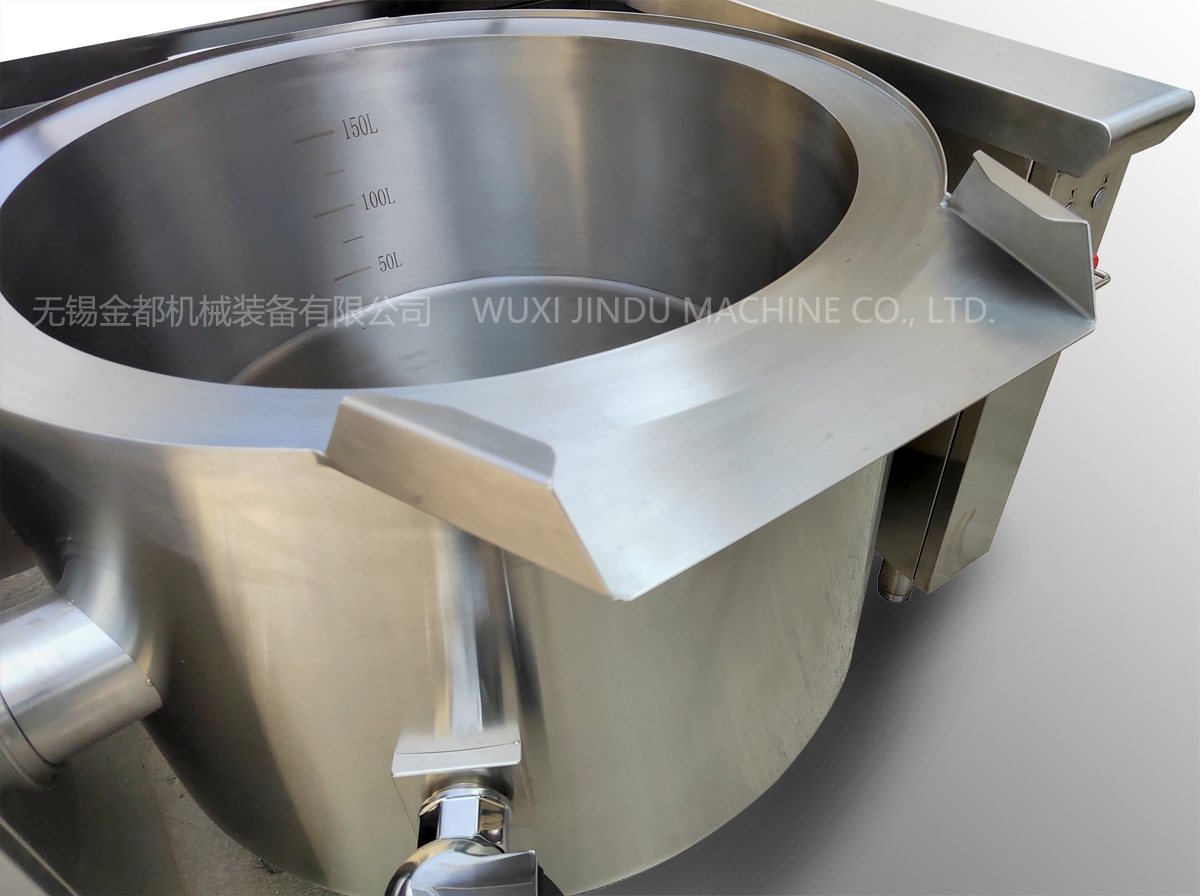

 Electric tilting-type large capacity cauldron

 Protections:Cauldron dry burning, Overvoltage, etc.

 Support customization: cauldron volume, heating power







▲ 主要参数:PARAMETER

尺寸: 1355×1240×935 mm

Dim: 1355×1240×935 mm (Cauldron: φ800×380 mm)

电源: 380V / 50Hz / 21kW

Power: 380V / 50Hz / 21kW

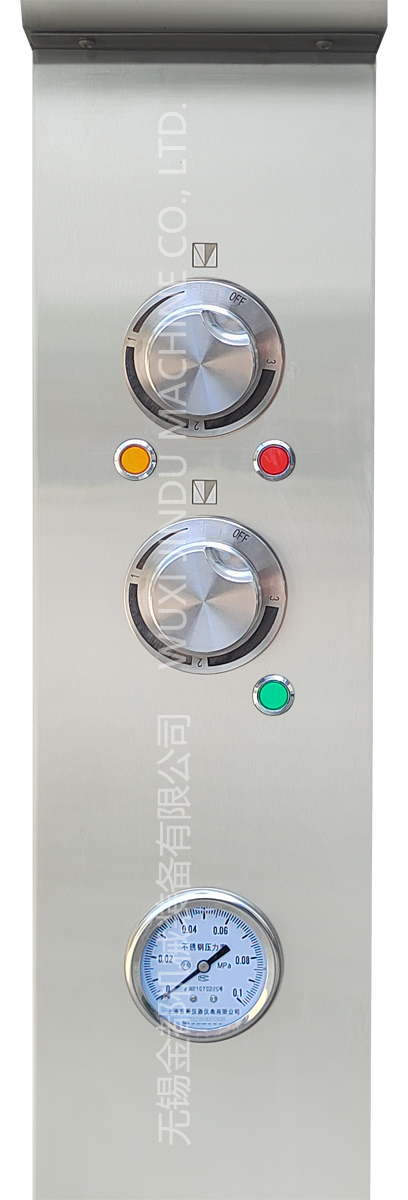

3档烹饪功率,烹饪温度可调

3 Level Auto-adjust power

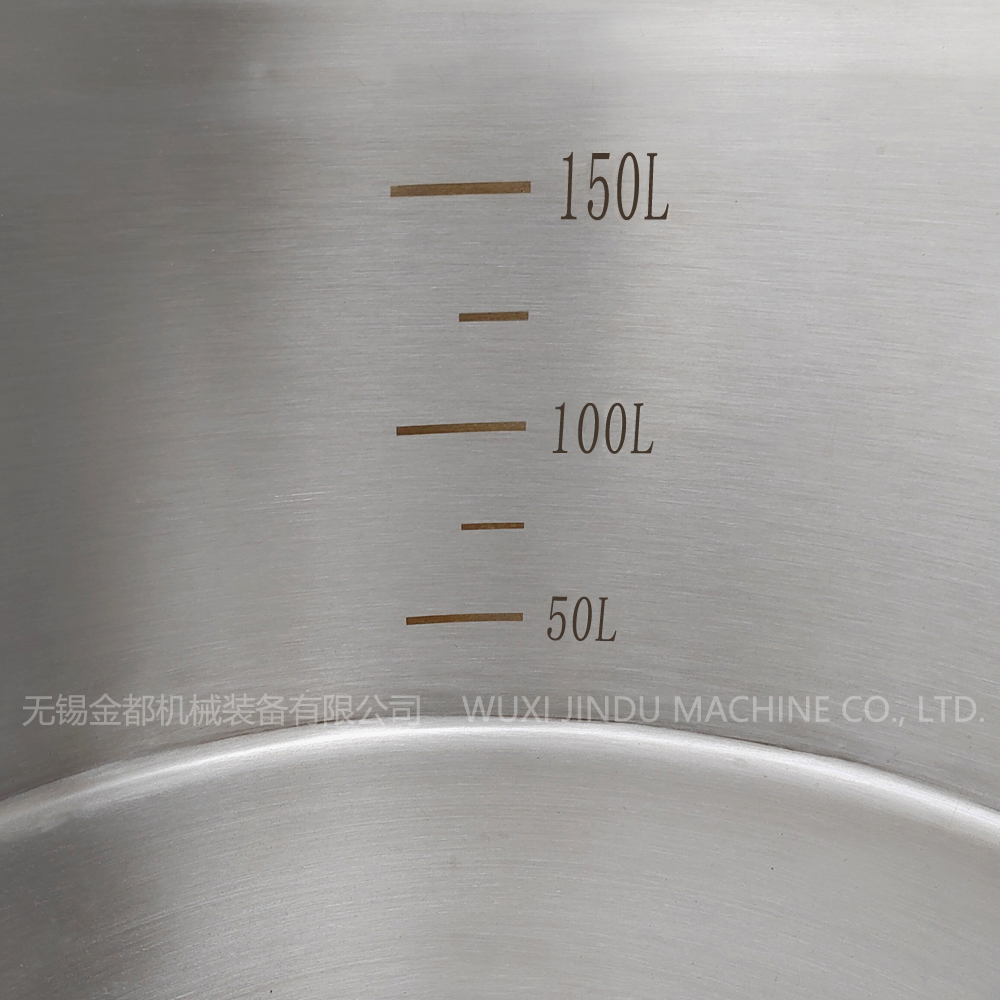

锅体: 材质304, 有效容积150L

SS304 spherical cauldron,Effective volume: 150L

锅倾倒角度: 91°

Cauldron tiltable down to 91°

150kg水煮沸≤50min, 90min内可处理150kg食物, 满足750人(按200g/人计算)

Boil 150L of water within 50 mins. Process up to 150kg of food within 90 mins (Using 200g protein/pax = 750 pax/cycle)
