▲ Product Description:

△ Equipment used for disinfection and sterilization in acidic and alkaline waste liquids with pH ranging from 4 to 10.

△ Main performance

>Material: Full 304 stainless steel, PTFE fittings

>Specifications and dimensions:

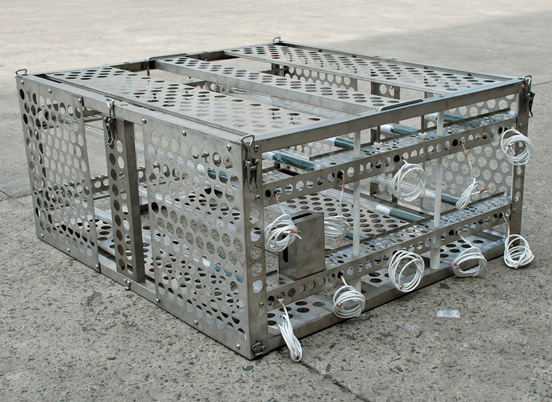

Type A: 1035 × 965 × 725 (mm)

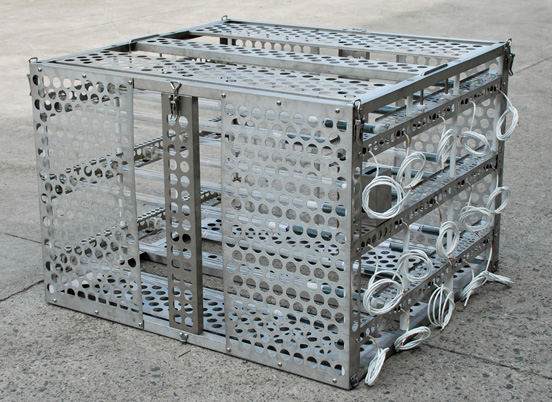

Type B: 1035 × 965 × 485 (mm)

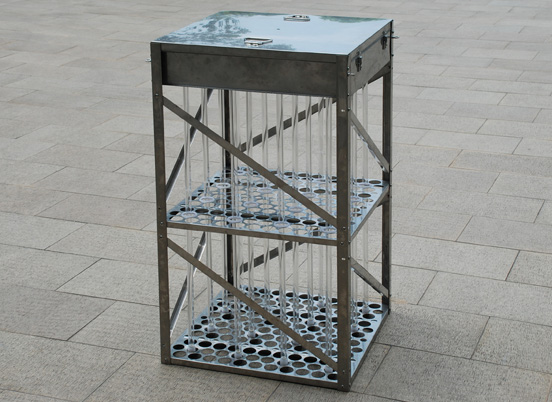

Type C: 720 × 725 × 1205 (mm)

>Number/power of UV lamps:

Type A: 15 light tubes (5 x 3 rows) 220V/0.6kW (40W per tube)

Type B: 10 light tubes (5 tubes x 2 rows) 220V/0.4kW (40W per tube)

Type C: 16 light tubes (4 x 4 rows) 220V/1.12kW (70W per tube)

>Equipment weight:

Type A: 27 kg

Type B: 35 kg

Type C: 40 kg

>Assembly form:

All models can be disassembled into loose pieces and assembled
