Automatic Diesel Steam Engine
    Publish time 2025-07-24 14:09

Using diesel as fuel and modular design, adjustable output of steam temperature and pressure can be achieved.

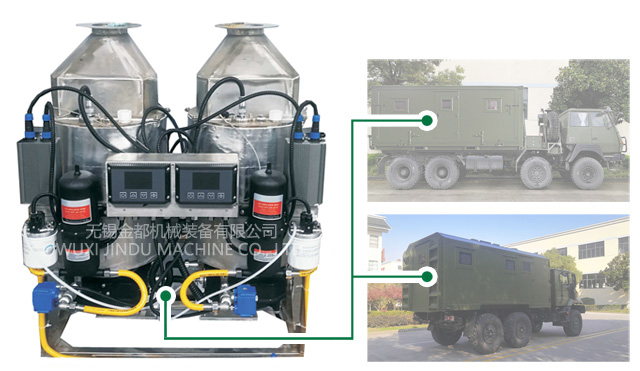

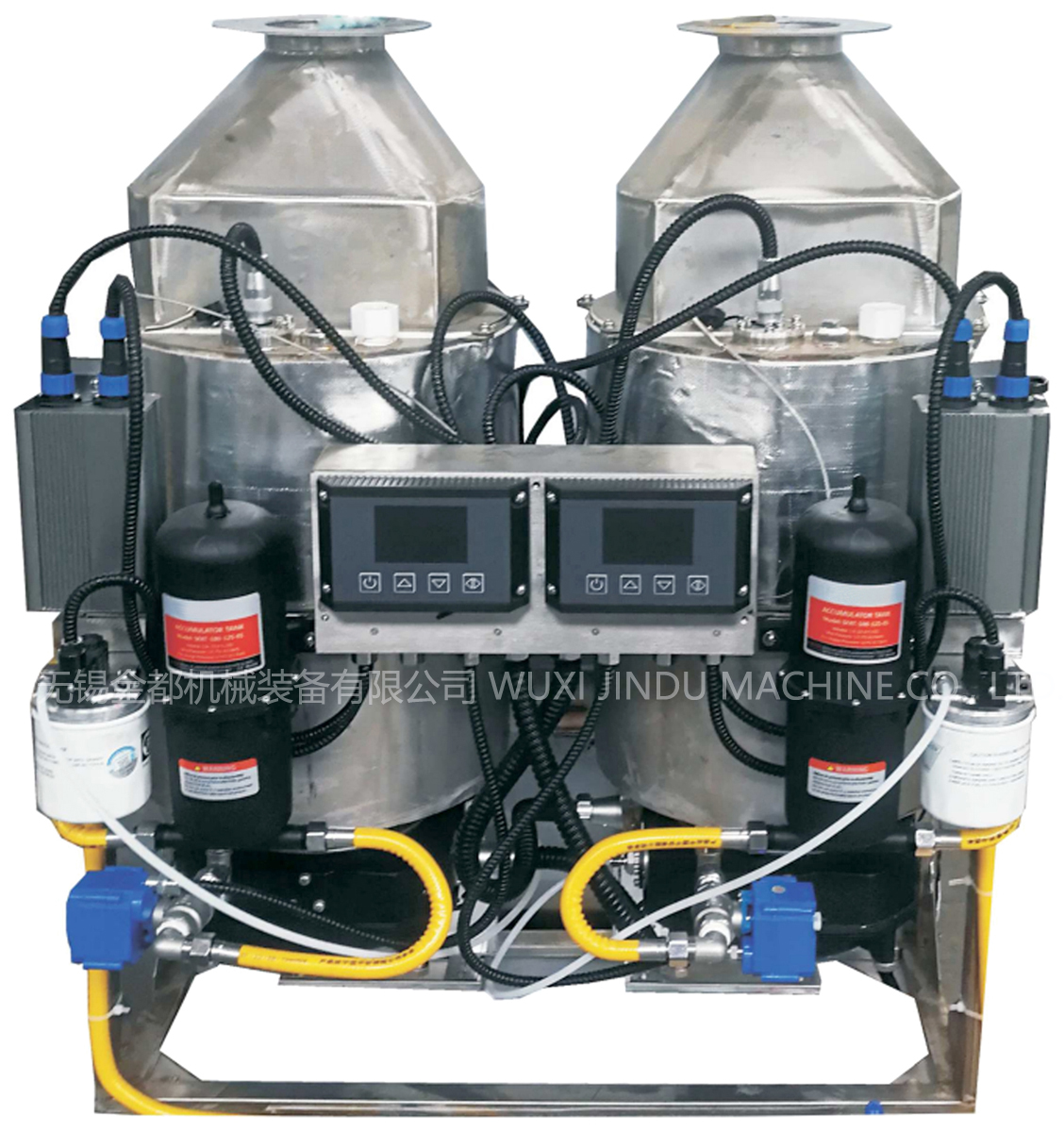

Automatic Diesel Steam Engine




▲ 通用说明
蒸汽发生器使用常规柴油作为燃料，采取模块化设计，可实现蒸汽温度和压力的可调输出，具有自动调整火力大小、自适应工作环境变化级信息化通讯等功能，高效节能、用途广泛。

GENERALITY:
The steam generator uses conventional diesel as fuel and adopts a modular design, which can achieve adjustable output of steam temperature and pressure. It has functions such as automatic adjustment of firepower, adaptive working environment change level information communication, etc. It is efficient, energy-saving, and widely used.


▲ 主要特点

△ 模块化设计：模块化组件，高效铜翅片换热器，工艺先进。

△ 自动燃烧器：采用立式柴油燃烧器，自动调节燃烧火力，产汽自由调节。

△ 高平原通用：自动侦测海拔、含氧量、环境温度，自适应0-4500m环境下作业。

▲ FEATURE & ADVANTAGE

△ Modular Design: Modular components, efficient copper fin heat exchanger, advanced technology.

△ Automatic Burner: Equipped with a automatic diesel burner, automatic adjustment of combustion power, and free adjustment of

     steam production.

△ Used both in plateaus and plains: Automatically detect altitude, oxygen, and temperature, suitable for altitudes ranging from 0-4500m.










▲ 主要参数 PARAMETER：

外形尺寸 Overall Dimension

≤ 650×550×1200 mm

整机重量 Whole Machine Weight

≤ 40kg

热利用率 Heat Utilization Rate

≥ 88%

额定热功率 Rated Output Thermal Power

MAX 50kW

额定产汽量 Rated Steam Production Capacity

MAX 65kg
