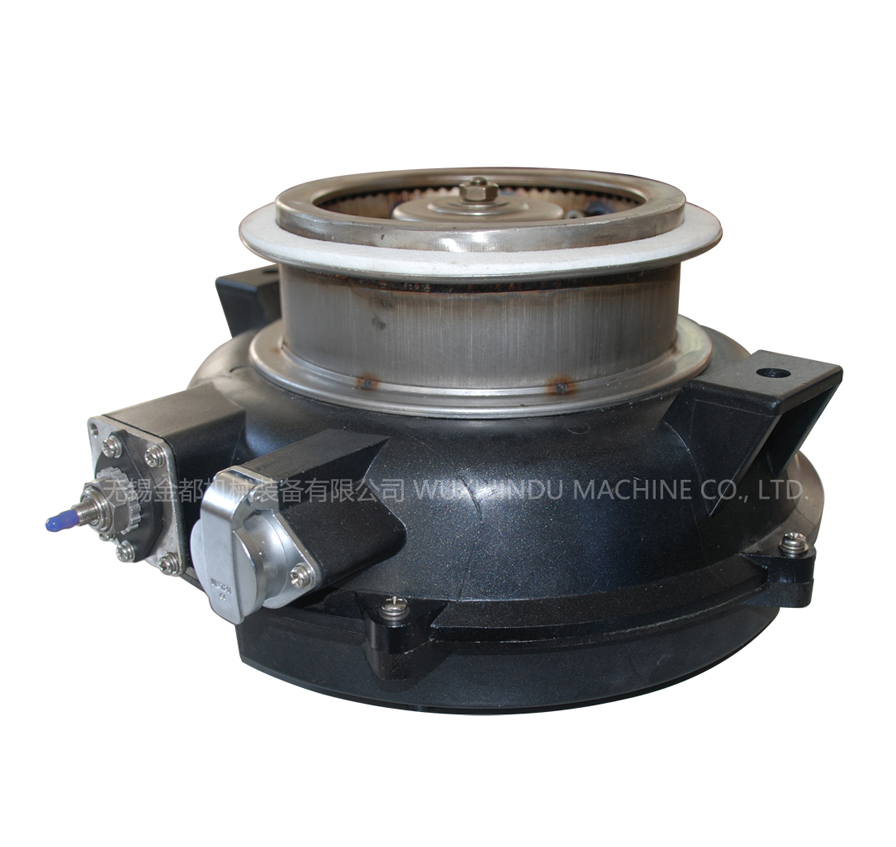

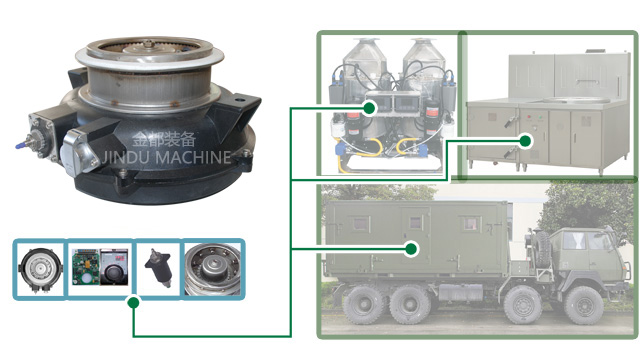

GENERALITY: The BLR series diesel burner uses conventional diesel as fuel, which can automatically adapt to the environment, improve firepower distribution, and continuously adjust output power. This series of products has diverse specifications, suitable for closed combustion, and meets the requirements of all regions. Suitable for various small boilers, steam generators, and cooking equipment.
▲主要特点
△ 低压蓄能点火：采用更安全的DC12V供电，大幅提高点火成功率。
△ 分段配风燃烧：分段进油、科学配风，有效解决燃烧不充分及喷嘴堵塞等弊病。
△ 功率无级输出：按工作环境参数自动调整空燃比，实现燃烧功率无级输出。
△ 高、平原通用：自动侦测海拔、含氧量、环境温度，自适应0-4500m环境下作业。
▲FEATURE & ADVANTAGE
△ Low Pressure Ignition: Using safer DC12V power supply significantly improves ignition success rate.
△ Segmented air/diesel distribution combustion: Segmented oil intake and scientific air distribution effectively solve problems such as
insufficient combustion and nozzle blockage.
△ Power output stepless adjustment: Automatically adjust air-fuel ratio according the environment，stepless output the power.
△ Used both in plateaus and plains: Automatically detect altitude, oxygen, and temperature, suitable for altitudes ranging from 0-4500m.
▲ 主要参数 PARAMETER：
外形尺寸 Overall Dimension
≤ φ450×300 mm
整机重量 Whole Machine Weight
≤5.5kg
平均耗油量Average Diesel Consumption
≤ 4.5kg/h
额定热功率Rated Output Thermal Power
10kW - 50kW
安装形式（竖装或横装） Installation Form Vertical Installation Or Horizontal Installation
