Integrated Kitchen Waste Disposer
    Publish time 2025-07-24 14:12

Open top design and centrifugal dewatering technology enable rapid reduction of kitchen waste volume.

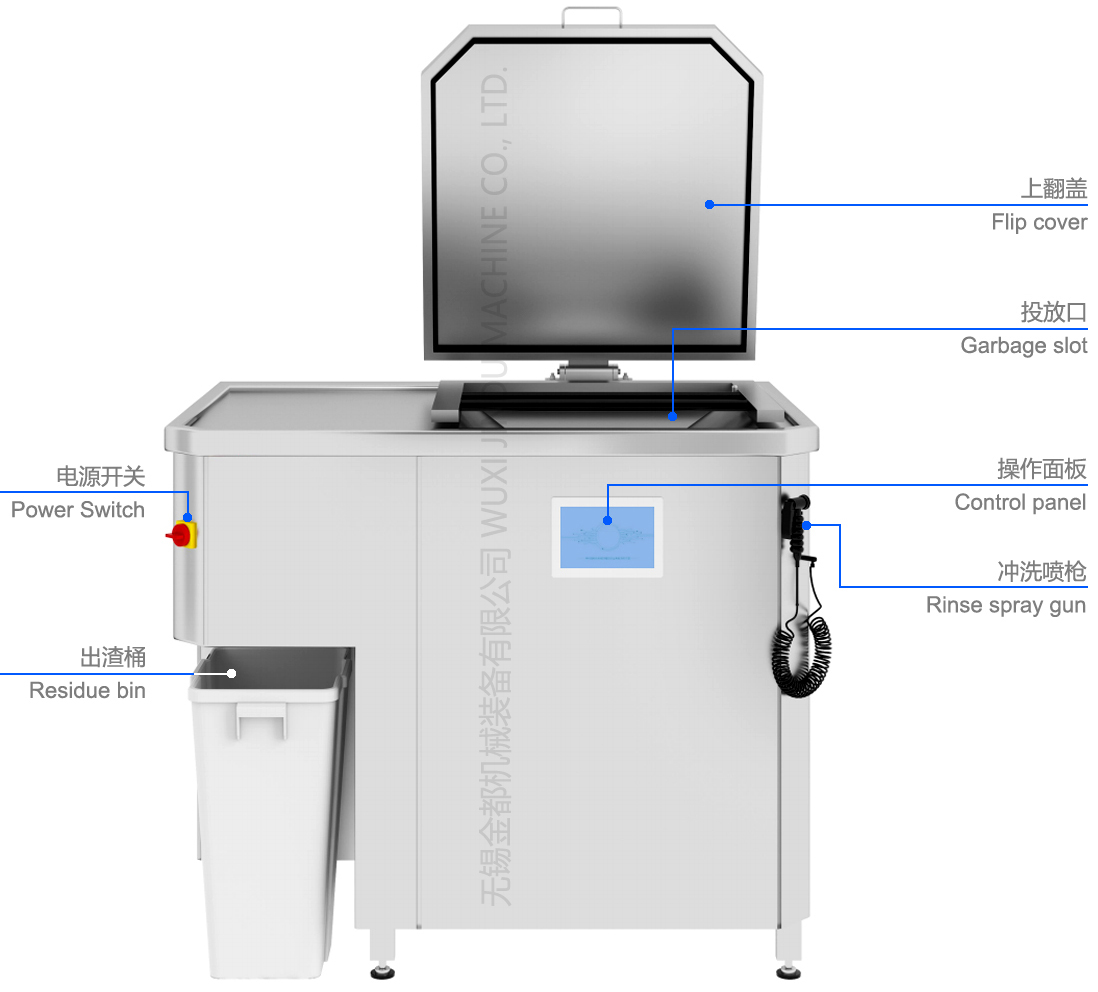

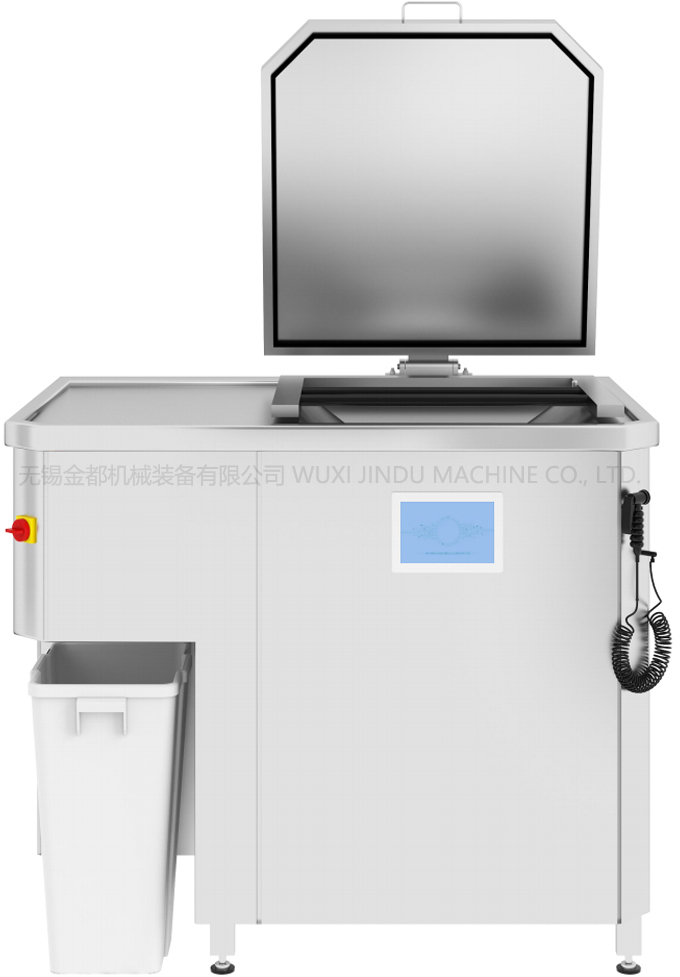

Integrated Kitchen Waste Disposer




 通用说明

餐厨垃圾的现场处理是当今的全球性问题,如何方便、有效且快速地使其脱水、减容,一直是我们的环保追求。新型厨余垃圾处理单体机,单机型揭盖式设计,配置创新型独立系统,利用独特的离心技术,不管是新建还是在现有设施基础上,均能让厨余垃圾迅速减容,完美适用于任意一个厨房或垃圾站。

GENERALITY:
The treatment of kitchen waste is a global issue today, and how to conveniently, effectively, and quickly dehydrate and reduce its volume has always been our environmental pursuit. This new single-unit kitchen waste treatment machine features a single-model cover-opening design and is equipped with an innovative independent system. Utilizing unique centrifugal technology, it can quickly reduce the volume of kitchen waste, whether it is for new construction or based on existing facilities. It is perfectly suitable for any kitchen or garbage station.


 主要特点

 FEATURE & ADVANTAGE

 单体机设计,安装简便

 最小占地面积仅为0.8m²

 适用于所有厨房有机垃圾

 内部自动循环清洗功能

 Single-unit design, easy to install.

 The equipment only occupies an area of 0.8m²

 Applicable to all organic kitchen waste.

 Internal automatic circulating cleaning function.







▲ 主要参数:PARAMETER

型号 Model

400 series

600 series

800 series

材质 Material


SUS304


尺寸 Dimensions(mm)

1050×750×900

1200×800×900

1400×800×900

处理量 Capacity

400 L /hour

600 L /hour

800 L /hour

适用人数 Applicable

1000 peoples

2500 peoples

3500 peoples

减容率 Volume reduction rate

80% (Remaining   quantity 20%)

电压/功率 V/kW

3N ~ 380V / 5kW

进水 Water Connection

冷热水 hot and cold water DN20

排水 Drain

DN50
