Eco Kitchen Waste Treatment System (n+1)
    Publish time 2025-07-24 14:12

投放单元和处理主机分体设计,通过真空管相联,有效避免了垃圾的转运。

Eco Kitchen Waste Treatment System (n+1)



 通用说明
餐厨垃圾的现场处理是当今的全球性问题,如何方便、有效且快速地使其脱水、减容,一直是我们的环保追求。新型厨余垃圾1+1处理机,采用投放单元和处理主机分体设计,可分别将其置于不同场所(例如将投放单元置于洗碗间,将处理主机置于垃圾房),之间通过真空管连接。处理主机单元实现了从厨房区域的分离,同时极大避免了垃圾的转运,降低环境污染,适用于对环境卫生要求较高的商用厨房。

GENERALITY:

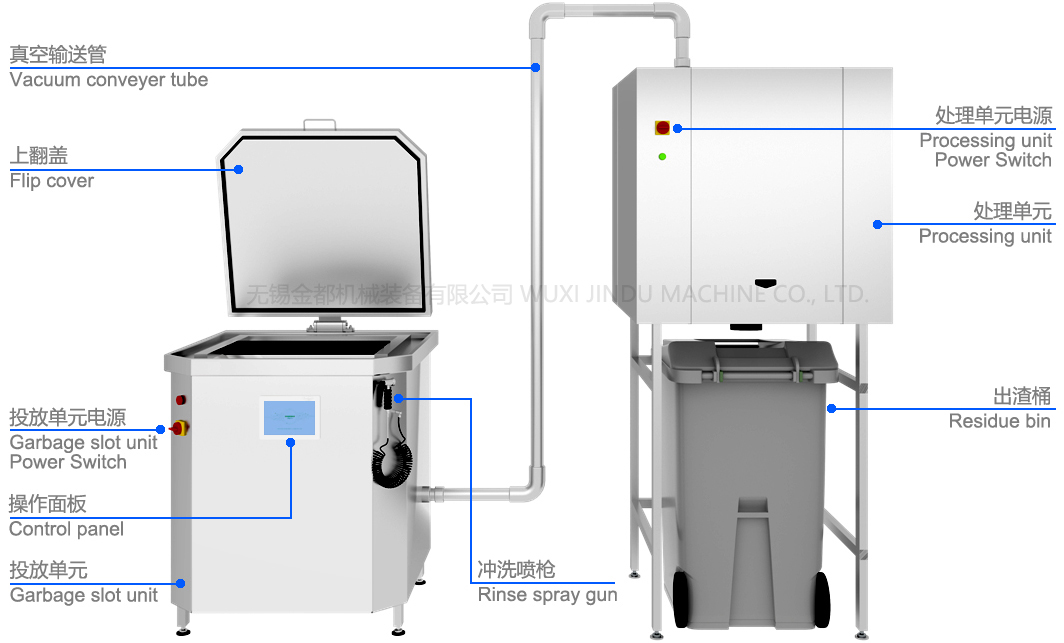

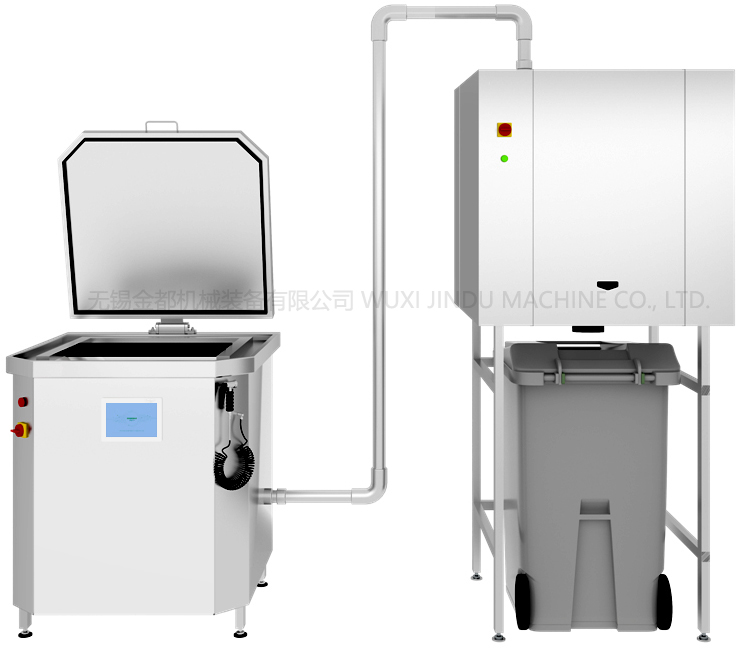

The treatment of kitchen waste is a global issue today, and how to conveniently, effectively, and quickly dehydrate and reduce its volume has always been our environmental pursuit. The new kitchen waste 1+1 treatment equipment adopts a separate design of the garbage slot unit and the processing unit, which can be placed in different places (such as placing the feeding unit in the dishwashing room and the processing host in the garbage room), connected by a vacuum tube. The processing host unit achieves separation from the kitchen area, while greatly avoiding the transportation of garbage and reducing environmental pollution, making it suitable for commercial kitchens with high environmental hygiene requirements.


 主要特点

 FEATURE & ADVANTAGE

垃圾投放和处理单元独立分体式设计

真空管最长连接距离可达300m

主要设备占地面积仅1.2m²

适用于所有厨房有机垃圾

内部自动循环清洗功能

 Split-type design, with independent garbage slot and processing units.

The connection distance of vacuum tubes can reach up to 300m.

The main equipment only occupies an area of 1.2m²

Applicable to all organic kitchen waste.

 Internal automatic circulating cleaning function.








▲ 主要参数:PARAMETER

型号Model

800 series

材质Material

SUS304

尺寸 Dimensions(mm)


       投放口单元 Garbage slot unit

750×750×900

       处理主机单元Processing unit

760×760×1800

处理量 Capacity

800 L /hour

减容率 Volume reduction rate

80% (Remaining quantity 20%)

电压/功率 V/kW


       投放口单元 Garbage slot unit

3N ~ 380V / 3kW

       处理主机单元Processing unit

3N ~ 380V / 5kW

进水 Water Connection

冷热水hot and cold water DN20

排水 Drain

DN50

真空管 Vacuum conveyer tube

DN57Connection length300m
