Oil Separator
    Publish time 2025-07-24 13:44

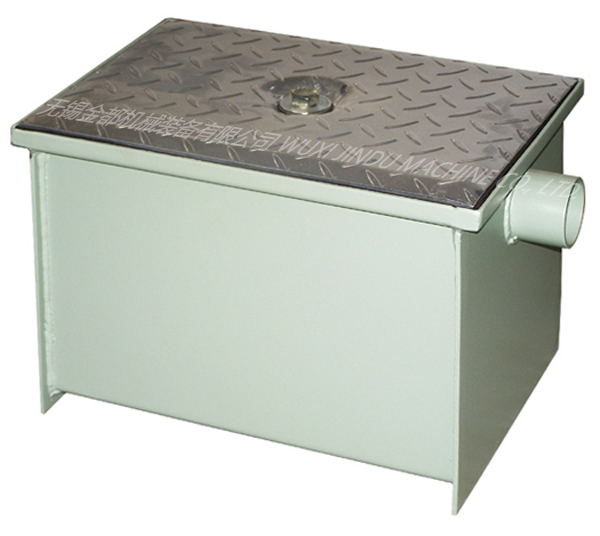

Oil Separator



▲ 通用说明

隔油池常安装于厨房中污水、油水流经的管路中，利用油脂与水的密度差，分离废水中的可浮性油类物质。使用时将污水出口和隔油池进口接驳，即可有效隔离污水中的油脂。

GENERALITY：
Oil separators are often installed in the pipelines through which sewage and oil-water flow in kitchens, using the density difference between oil and water to separate floatable oil substances from wastewater. When in use, connecting the sewage outlet to the inlet of the grease trap can effectively isolate the grease in the sewage.


▲ 主要特点

▲ FEATURE & ADVANTAGE

△ 材质为Q235铁板，内外表面静电喷涂

△ 整体型，不可拆卸

△ 配附件（三通）

△ The material is Q235 iron, and the inner and outer surfaces are
    electrostatically sprayed.

△ Integral type, non assembled type.

△ Accessories (three-way).







▲ 主要参数 PARAMETER

型号

Model

尺寸(宽×深×高)

Dim (Width × Depth   × Height)

（mm）

三通 (直通口径)

Three-way (Straight   Section Diameter)

（mm）

容 量

capacity

（LBS）

流 量

flow rate

（G.P.M）

8 LBS

423×288×280

φ60

8

4

14 LBS

453×350×305

φ60

14

7

20 LBS

453×350×305

φ60

20

10

30 LBS

606×408×450

φ89

30

15

40 LBS

708×432×450

φ89

40

20

50 LBS

703×477×450

φ89

50

25

70 LBS

792×605×560

φ89

70

35

100 LBS

792×605×610

φ115

100

50

150 LBS

914×727×578

φ115

150

75

200 LBS

1086×854×578

φ115

200

100

L40 LBS

862×611×280

φ89

40

20

L70 LBS

1065×715×280

φ89

70

35

L100 LBS

1166×764×280

φ89

100

50
