Gastronorm Containers(Stainless Steel GN Pan)
    Publish time 2025-07-24 13:44

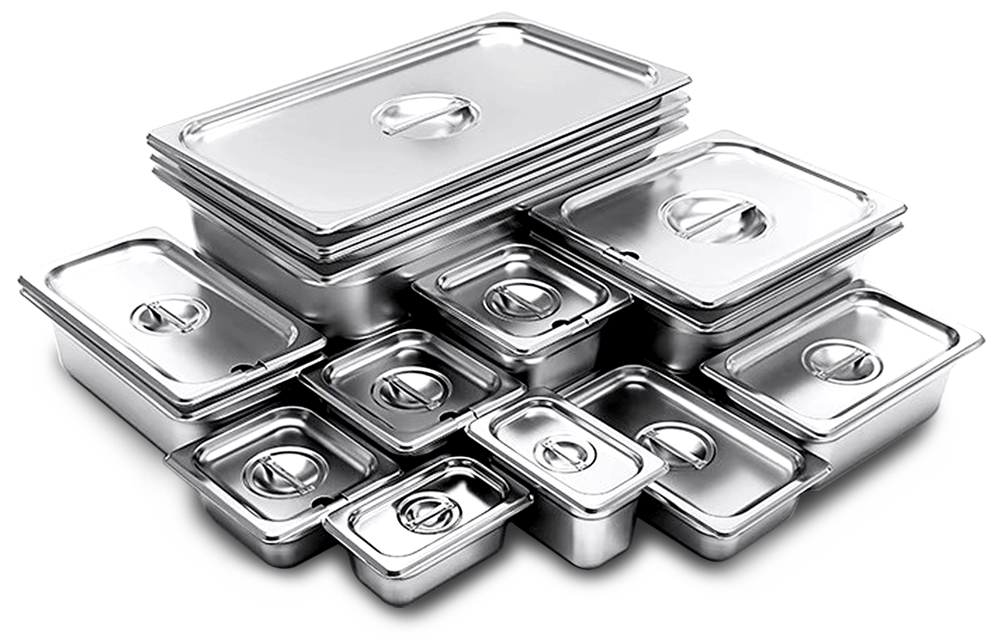

Gastronorm Containers(Stainless Steel GN Pan)



通用说明

GN份数盆是商用厨房中最常用的标准化不锈钢容器,主要用于酒店、餐厅等餐饮场所。其基准规格1/1型号尺寸为530×325mm,并衍生出1/2、1/4、1/8、1/3、2/3、2/1等标准规格,分为美标规格(American Style)和欧标规格(European Style)两类国际标准体系。

GENERALITY:
GN pan is the most commonly used standardized stainless steel container in commercial kitchens, mainly used in hotels, restaurants, and other dining establishments. The benchmark specification 1/1 model size is 530 × 325mm, and standard specifications such as 1/2, 1/4, 1/8, 1/3, 2/3, 2/1 have been derived, which are divided into two international standard systems: American Style and European Style.


 主要特点

 FEATURE & ADVANTAGE

不锈钢304材质

国际标准尺寸、容积

内外电解工艺,防腐易清洁

另有冲孔盘、不沾涂层盘

 Material: Stainless steel 304

 International standard dimensions and volumes

 Internal and external electrolysis process, anti-corrosion and easy to clean

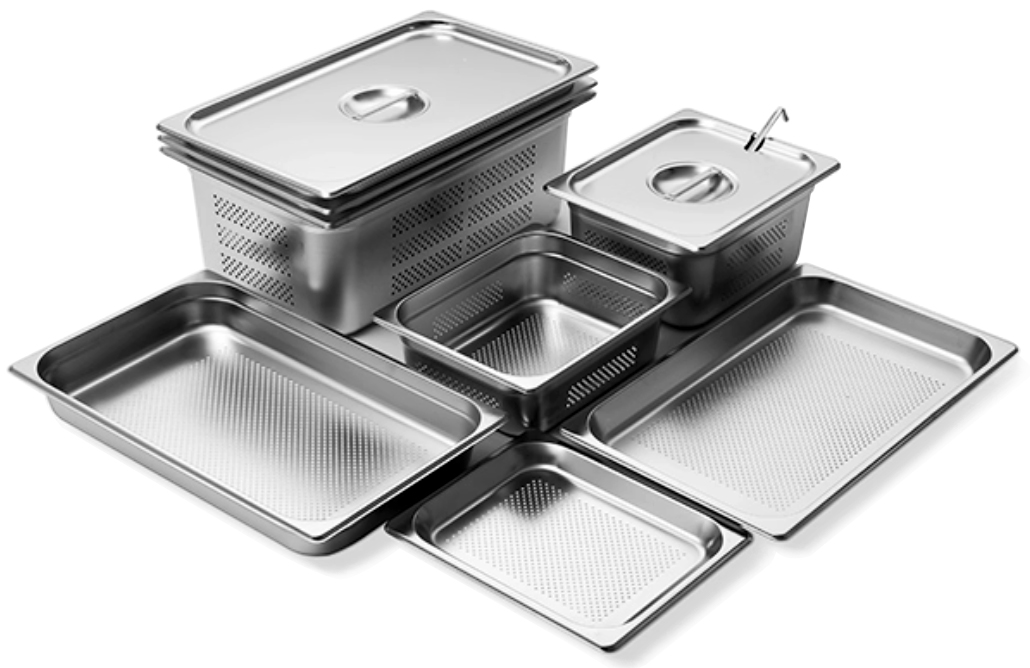

There are also perforated pan and Non-Stick pan available







主要参数  PARAMETER

规格Style

尺寸Specification   (mm)

深度Depth (mm)

附加功能Additional Function

GN 2/1

650×530

20/40/65/100/150/200



       Stainless Steel GN Pan

① PERFORATED
② Non-Stick

GN 1/1

530×325

20/40/65/100/150/200

GN 1/2

325×265

20/40/65/100/150/200

GN 1/3

325×176

20/40/65/100/150/200

GN 1/4

265×162

65/100/150/200

GN 1/6

176×162

65/100/150/200

GN 1/9

176×108

65/100/150

GN 1/12

132×108

65/100

GN 2/3

354×325

20/40/65/100/150/200
