▲ 通用说明
饼盘车几乎适用于所有酒店、餐厅、央厨等餐饮场所,可高效整理托盘,提升空间利用率。其通过垂直多层设计,可整齐存放大量托盘(如600×400mm烤盘或GN盆),并在工作区和存储区间灵活转运,节省厨房空间且保持食品卫生。规格上支持用户按需求定制尺寸、层数及材质,均带锁设计并可拆卸。
GENERALITY:
The SS GN Tray Trolley is almost suitable for all hotels, restaurants, central kitchens and other catering venues, which can efficiently organize trays and improve space utilization.Through its vertical multi-layer design, it can neatly store a large number of trays (such as 600 × 400mm baking pans or GN pans), and flexibly transport them between the work area and storage area, saving kitchen space and maintaining food hygiene. In terms of specifications, it supports users to customize sizes, layers, and materials according to their needs, all with lock design and detachable.
▲ 主要特点 | ▲ FEATURE & ADVANTAGE |
△ 支持按需定制(尺寸、层数、材质) △ 主材为430或201、304不锈钢可选 △ 侧架片、横档、脚轮等均为拆装式 △ 容量:最大可放置20盘。 | △ Support customization on demand (size, number of layers, material) △ The main material is SS430 or 201, 304, which is optional △ The side frame pieces, crossbars, casters, etc. are all detachable △ Capacity: Up to 20 pans can be placed. |
▲ 主要参数 PARAMETER:
规格 Style | 尺寸Specification (mm) | 容纳GN规格×数量 Qty ×GN pan style |

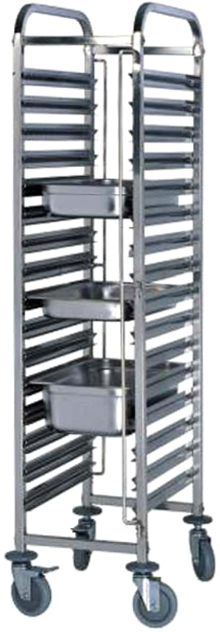

单列高款/Single high style (GN 1/1) | 380×550×1735 | 15 ×GN 1/1 pans |

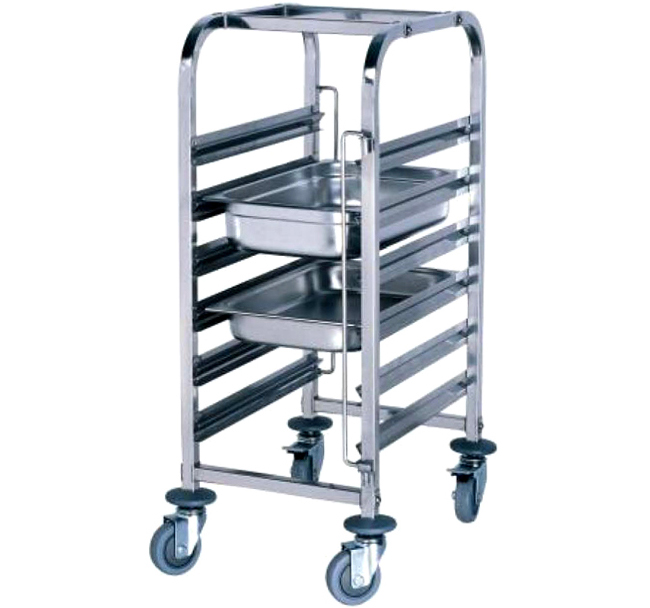

单列低款/Single low style (GN 1/1) | 380×550×1000 | 6 ×GN 1/1 pans |

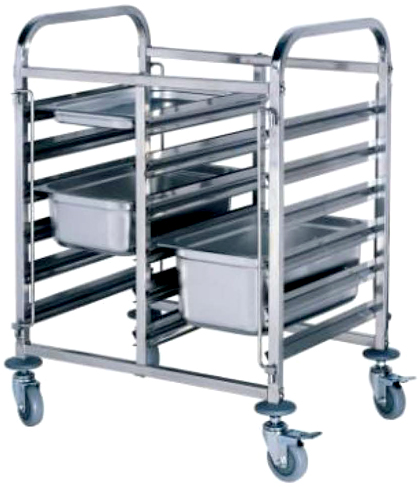

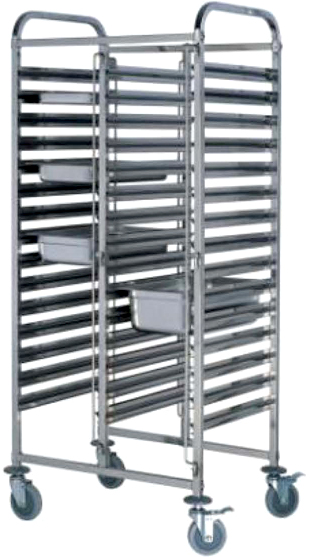

双列高款/Double high style (GN 1/1) | 590×670×1735 | 2× 15×GN 1/1 pans |
双列低款/Double low style (GN 1/1) | 590×670×1000 | 2× 6×GN 1/1 pans |
单列高款/Single high style (GN 2/1) | 740×550×1735 | 15 ×GN 2/1 pans |
单列低款/Single low style (GN 2/1) | 740×550×1000 | 6 ×GN 2/1 pans |
